Condensate Drains

Jorc Condensate Drains

The process of compressing air produces condensate (water) in your air compressor or compressed air system. When you fit a condensate removal auto drain you will quickly restore your air compressors or compressed air system to a dryer, clean and reliable reticulation electronic drain valve model 2000 system free of unwanted rust.

Level sensed drains remove condensate from compressed air systems without discharging unnecessary loss of costly compressed air. The JORC level sensing drain options include an electronic zero air loss drain including an alarm feature, a magnetic zero air loss drain specifically for filter applications whereby the drain does not require electricity to operate and a pneumatic operated level sensed drain that also does not require electricity to operate.

Timer drains discharge condensate from compressed air systems. The timer can be adjusted to discharge the condensate according to the specific needs of the compressed air system. The JORC range of timer drains is diverse and offers you drain solutions for pressures ranging from 0 to 500 bar. Multiple voltage options and valve material options are available.

Models Available

MAGY range of magnetically operated zero air loss condensate drain valvesbrochure
Part # Series   Connection Pressure Inlet
MDV3902-1/2 MAGY-UL   1/2" BSP 16 bar max. Single
MDV3904-1/2 MAGY   1/2" BSP 16 bar max. Dual

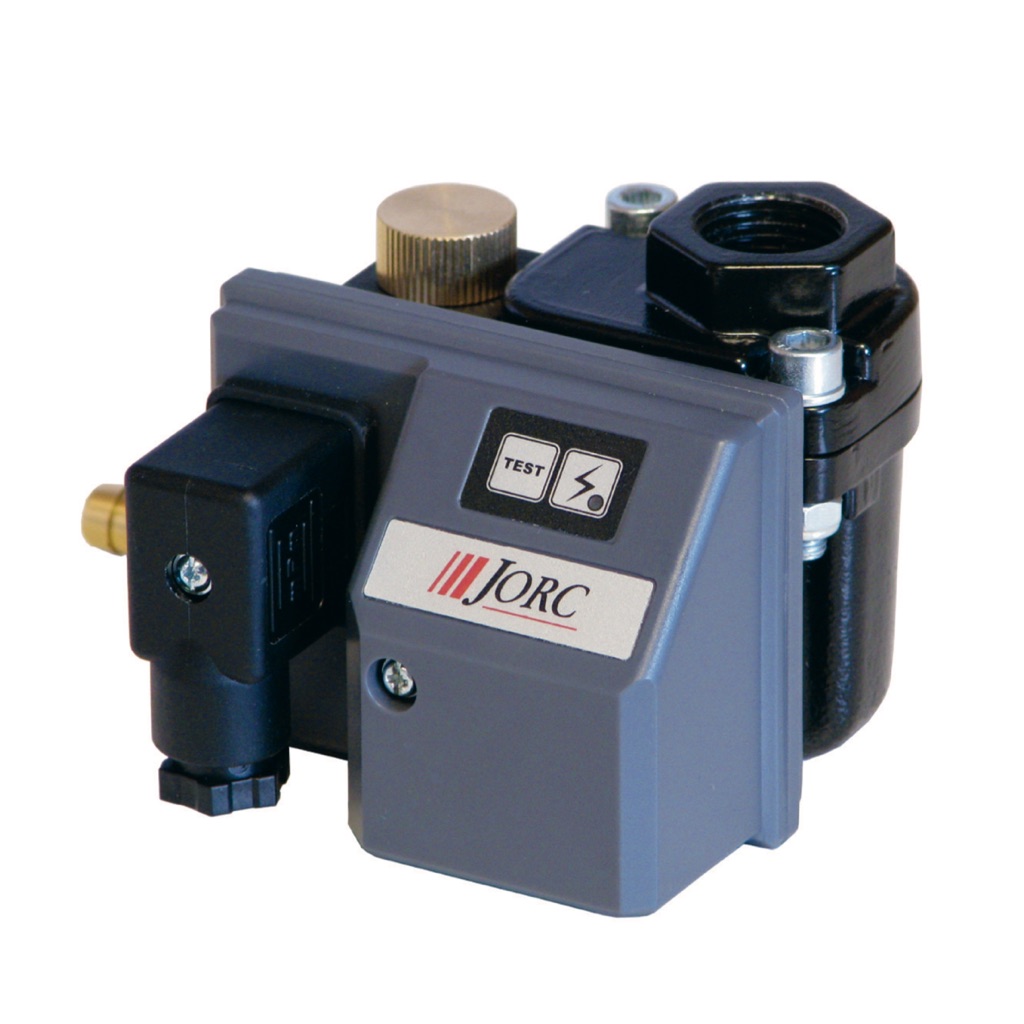

KAPTIV-MD electronic sensed drain valve brochure
Part # Series Voltage Connection Pressure Capacity
EDV3402-1/2 KAPTIV-MD 230 VAC 1/2" BSP 16 bar max. 10 m3/min
EDV3423-1/2 KAPTIV-MD 115 VAC 1/2" BSP 16 bar max. 10 m3/min
EDV3462-1/2 KAPTIV-MD 24 VAC 1/2" BSP 16 bar max. 10 m3/min
EDV3482-1/2 KAPTIV-MD 24 VDC 1/2" BSP 16 bar max. 10 m3/min

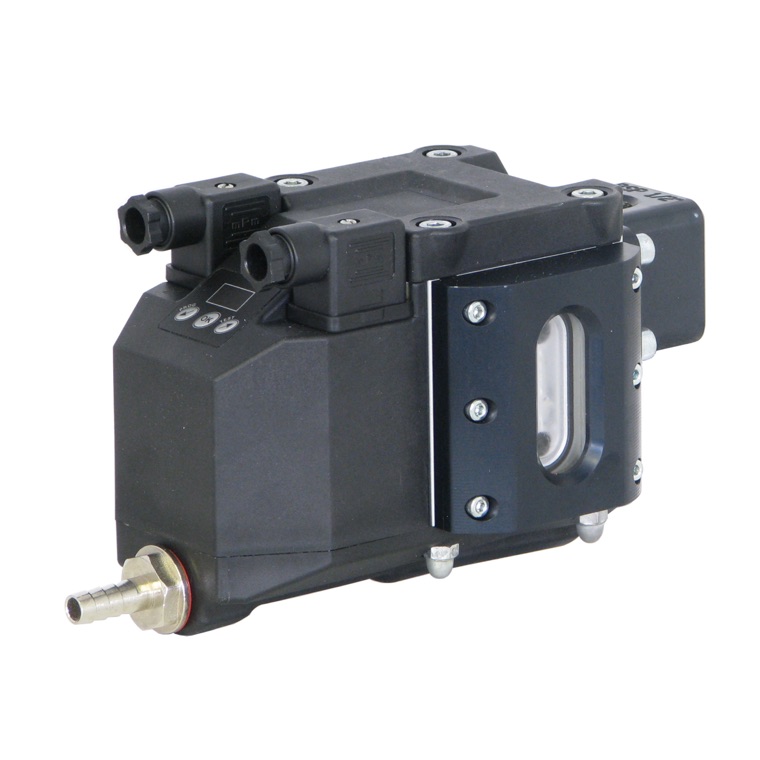

KAPTIV-CS electronic sensed drain valve with alarm functionbrochure
Part # Series Voltage Connection Pressure Capacity
EDV3403-1/2-A3 KAPTIV-CS-A3 NO 230 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3423-1/2-A3 KAPTIV-CS-A3 NO 115 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3463-1/2-A3 KAPTIV-CS-A3 NO 24 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3483-1/2-A3 KAPTIV-CS-A3 NO 24 VDC 1/2" BSP 16 bar max. 100 m3/min

EDV3403-1/2-A4 KAPTIV-CS-A4 NC 230 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3423-1/2-A4 KAPTIV-CS-A4 NC 115 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3463-1/2-A4 KAPTIV-CS-A4 NC 24 VAC 1/2" BSP 16 bar max. 100 m3/min
EDV3483-1/2-A4 KAPTIV-CS-A4 NC 24 VDC 1/2" BSP 16 bar max. 100 m3/min
KAPTIV-CS-HP electronic sensed drain valve with alarm function for high pressure systemsbrochure
Part # Series Voltage Connection Pressure Capacity
EDV3403-1/2-A1-HP KAPTIV-CS-HP A1 230 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3423-1/2-A1-HP KAPTIV-CS-HP A1 115 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3463-1/2-A1-HP KAPTIV-CS-HP A1 24 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3483-1/2-A1-HP KAPTIV-CS-HP A1 24 VDC 1/2" BSP 50 bar max. 100 m3/min

EDV3403-1/2-A2-HP KAPTIV-CS-HP A2 230 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3423-1/2-A2-HP KAPTIV-CS-HP A2 115 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3463-1/2-A2-HP KAPTIV-CS-HP A2 24 VAC 1/2" BSP 50 bar max. 100 m3/min
EDV3483-1/2-A2-HP KAPTIV-CS-HP A2 24 VDC 1/2" BSP 50 bar max. 100 m3/min

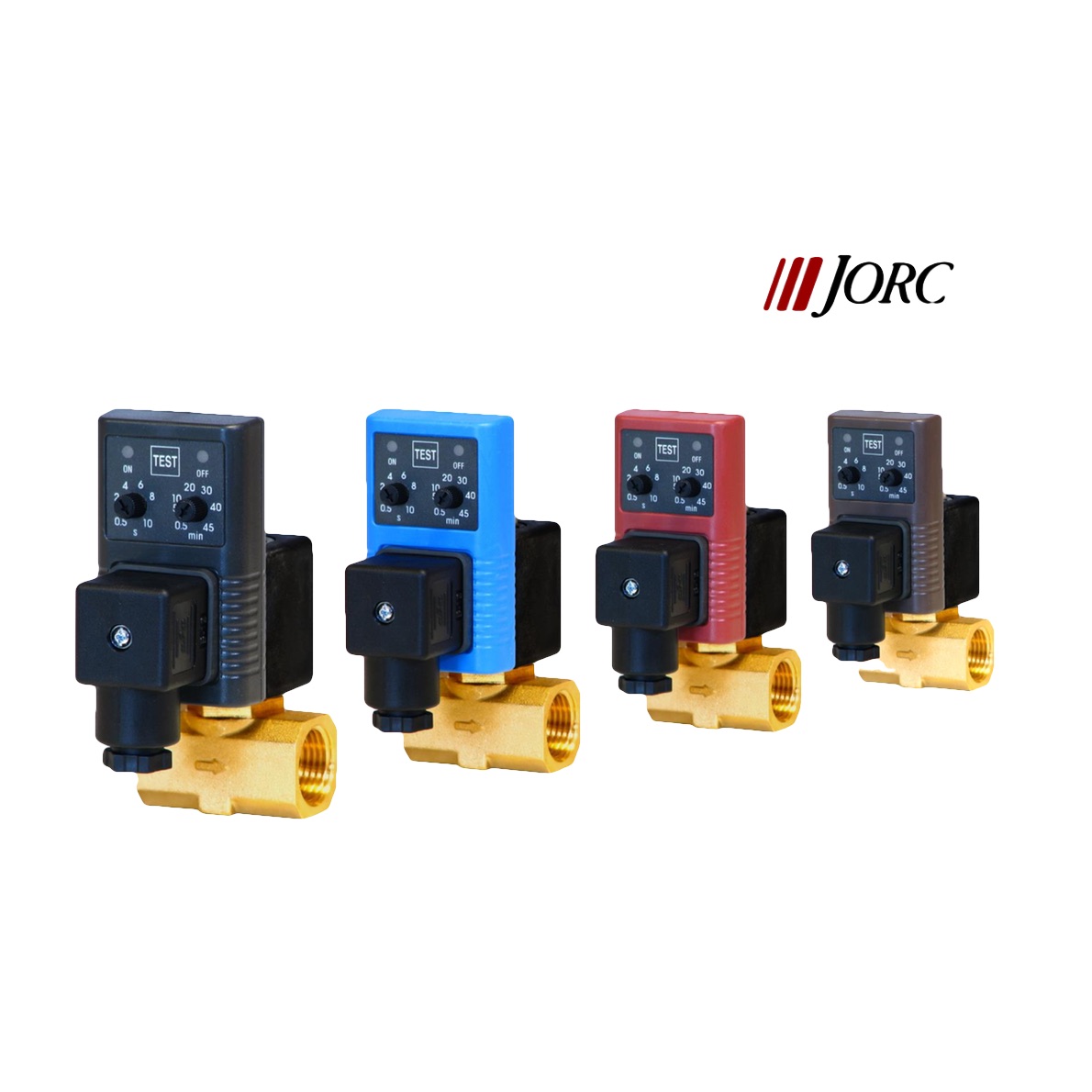

EZ-1 economy timer controlled condensate drain valvesbrochure
Part # Series Voltage Connection Pressure Orifice
EDV2000-115A1/2 EZ-1 115 VAC 1/2" BSP 16 bar max. 4.0 mm
EDV2000-115A1/4 EZ-1 115 VAC 1/4" BSP 16 bar max. 4.0 mm
EDV2000-115A3/8 EZ-1 115 VAC 3/8" BSP 16 bar max. 4.0 mm
EDV2000-240A1/2 EZ-1 230 VAC 1/2" BSP 16 bar max. 4.0 mm
EDV2000-240A3/8 EZ-1 230 VAC 3/8" BSP 16 bar max. 4.0 mm
EDV2000-240A1/4 EZ-1 230 VAC 1/4" BSP 16 bar max. 4.0 mm

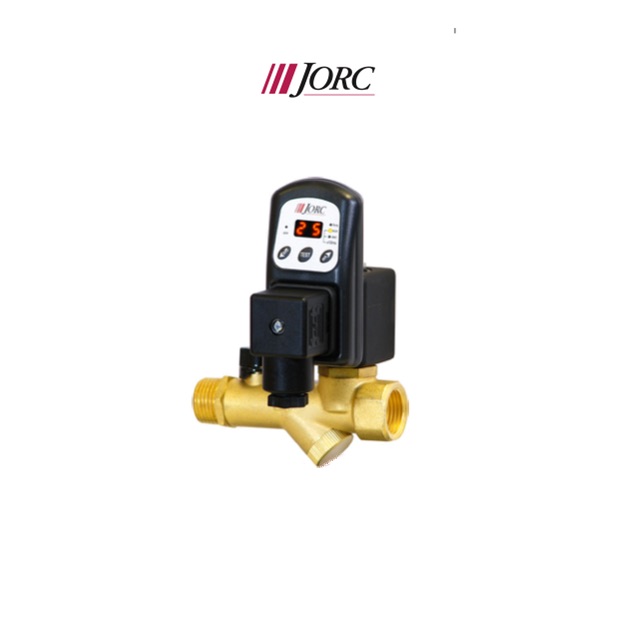

COMBO-D-LUX digital timer controlled with ball valve strainerbrochure
Part # Series Voltage Connection Pressure Orifice
EDV2000-240V-DLUX COMBO-D-LUX 230 VAC 1/2" BSP 16 bar max. 4.0 mm
EDV2000-115V-DLUX COMBO-D-LUX 115 VAC 1/2" BSP 16 bar max. 4.0 mm
EDV2000-24VA-DLUX COMBO-D-LUX 24 VAC 1/2" BSP 16 bar max. 4.0 mm
EDV2000-24VD-DLUX COMBO-D-LUX 24 VDC 1/2" BSP 16 bar max. 4.0 mm

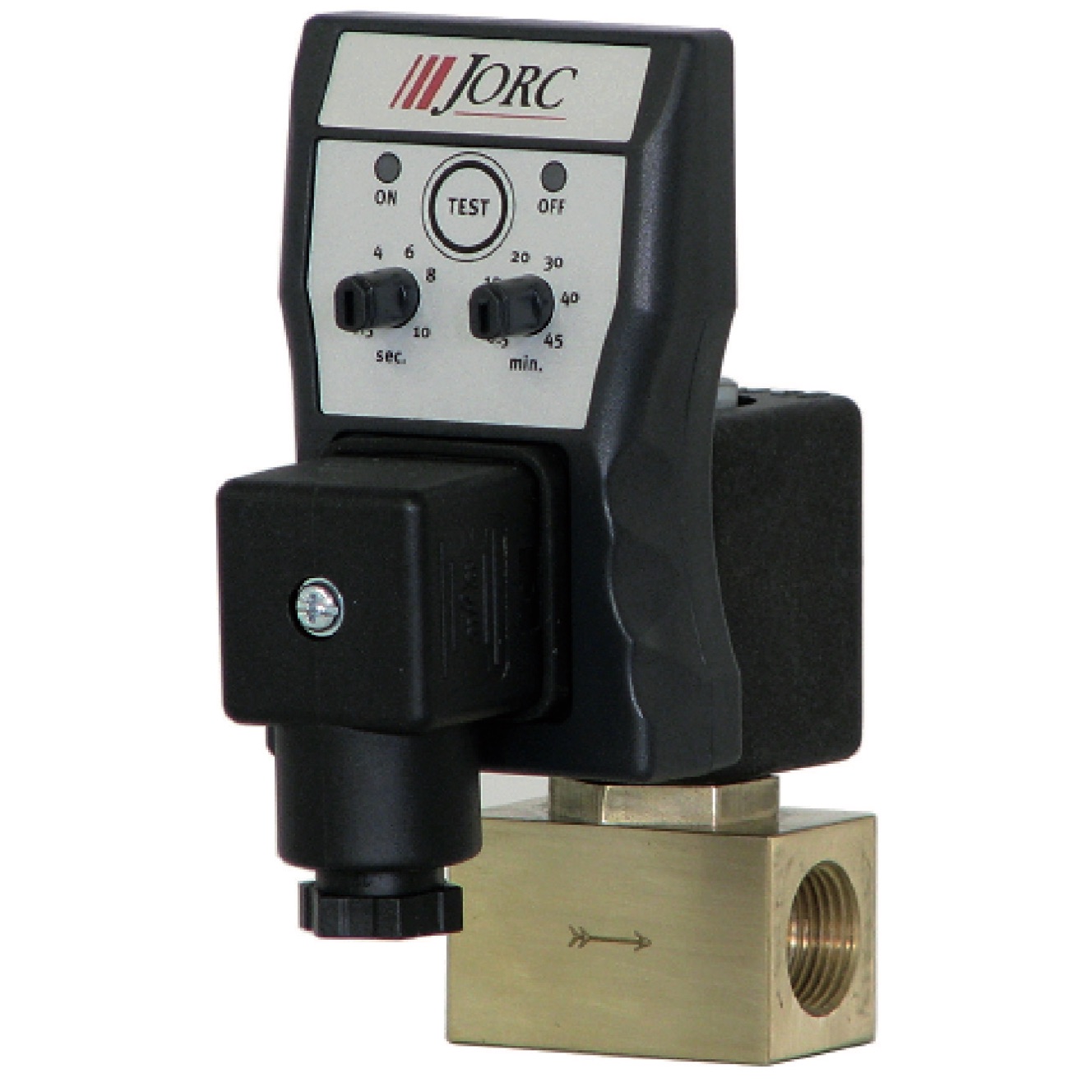

FLUIDRAIN premium timer controlled drainbrochure
Part # Series Voltage Connection Pressure Orifice
EDV2000-240A1/4 FL FLUIDRAIN 230 VAC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-240A3/8 FL FLUIDRAIN 230 VAC 3/8 BSP 16 bar max. 4.5 mm
EDV2000-240A1/2 FL FLUIDRAIN 230 VAC 1/2" BSP 16 bar max. 4.5 mm
EDV2000-115A1/4 FL FLUIDRAIN 115 VAC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-115A3/8 FL FLUIDRAIN 115 VAC 3/8" BSP 16 bar max. 4.5 mm
EDV2000-115A1/2 FL FLUIDRAIN 115 VAC 1/2" BSP 16 bar max. 4.5 mm
EDV2000-24A1/4 FL FLUIDRAIN 24 VAC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-24A3/8 FL FLUIDRAIN 24 VAC 3/8" BSP 16 bar max. 4.5 mm
EDV2000-24A1/2 FL FLUIDRAIN 24 VAC 1/2" BSP 16 bar max. 4.5 mm
EDV2000-24D1/4 FL FLUIDRAIN 24 VDC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-24D3/8 FL FLUIDRAIN 24 VDC 3/8" BSP 16 bar max. 4.5 mm
EDV2000-24D1/2 FL FLUIDRAIN 24 VDC 1/2" BSP 16 bar max. 4.5 mm
EDV2000-12D1/4 FL FLUIDRAIN 12 VDC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-12D3/8 FL FLUIDRAIN 12 VDC 3/8" BSP 16 bar max. 4.5 mm
EDV2000-12D1/2 FL FLUIDRAIN 24 VDC 1/2" BSP 16 bar max. 4.5 mm
EDV2000-380D1/4 FL FLUIDRAIN 380 VAC 1/4" BSP 16 bar max. 4.5 mm
EDV2000-380D3/8 FL FLUIDRAIN 380 VAC 3/8 BSP 16 bar max. 4.5 mm
EDV2000-380D1/2 FL FLUIDRAIN 380 VAC 1/2" BSP 16 bar max. 4.5 mm
FLUIDRAIN-HP brass high pressure version of FLUIDRAINbrochure
Part # Series Voltage Connection Pressure Orifice
EDV2000-240A FL40 FLUIDRAIN-HP40 230 VAC 1/4" BSP 40 bar max. 2.0 mm
EDV2000-115A FL40 FLUIDRAIN-HP40 115 VAC 1/4" BSP 40 bar max. 2.0 mm
EDV2000-24A FL40 FLUIDRAIN-HP40 24 VAC 1/4" BSP 40 bar max. 2.0 mm
EDV2000-24D FL40 FLUIDRAIN-HP40 24 VDC 1/4" BSP 40 bar max. 2.0 mm

EDV2000-240A FL80 FLUIDRAIN-HP80 230 VAC 1/4" BSP 80 bar max. 2.0 mm
EDV2000-115A FL80 FLUIDRAIN-HP80 115 VAC 1/4" BSP 80 bar max. 2.0 mm
EDV2000-24A FL80 FLUIDRAIN-HP80 24 VAC 1/4" BSP 80 bar max. 2.0 mm
EDV2000-24D FL80 FLUIDRAIN-HP80 24 VDC 1/4" BSP 80 bar max. 2.0 mm

Related Products

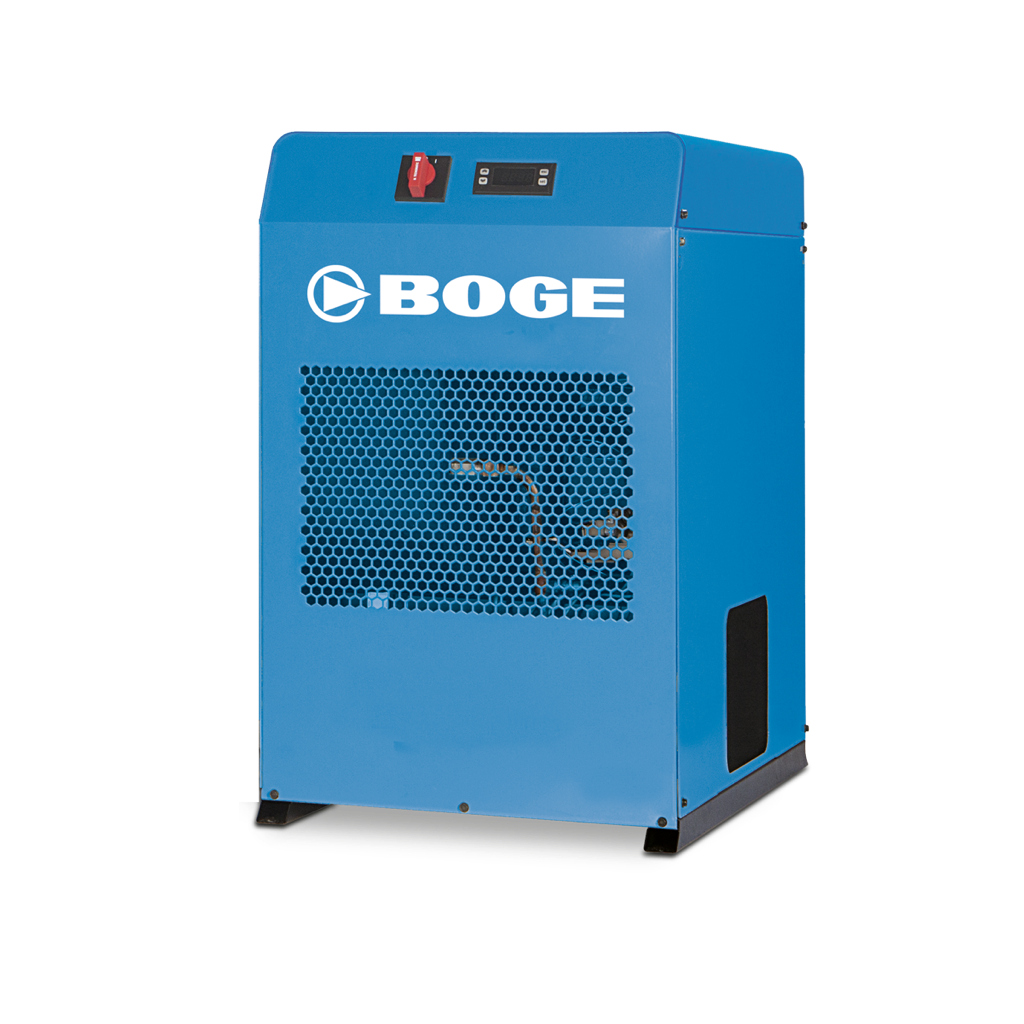

PRODUCT DETAIL BOGE DS-52 Refrigerant Dreyr

BOGE

Refrigerant Dryers
PRODUCT DETAIL BOGE S 101 Screw COmpressor

Fusheng

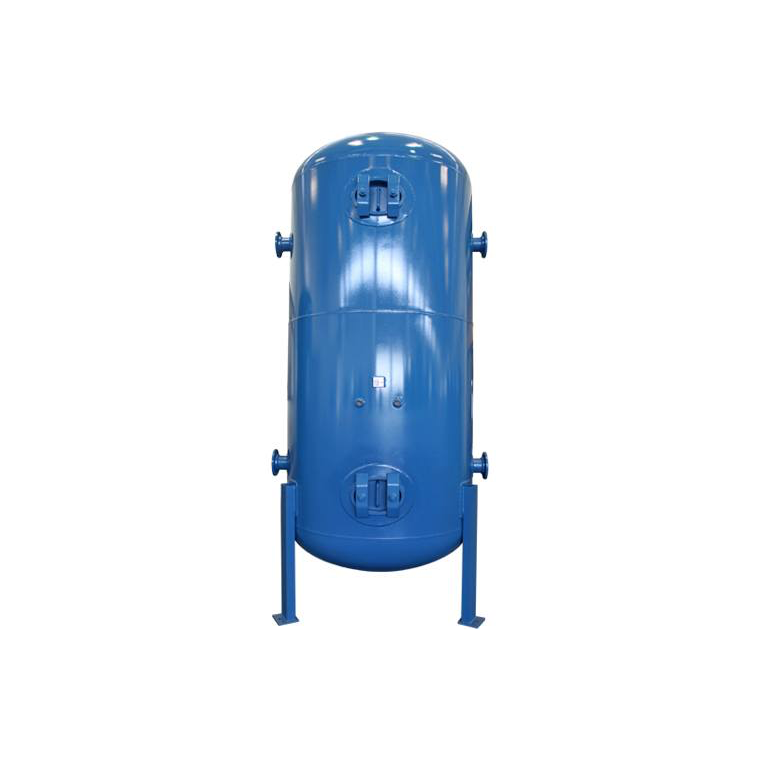

Air Receivers
PRODUCT DETAIL BOGE SL 340 Screw Compressor

Maxair

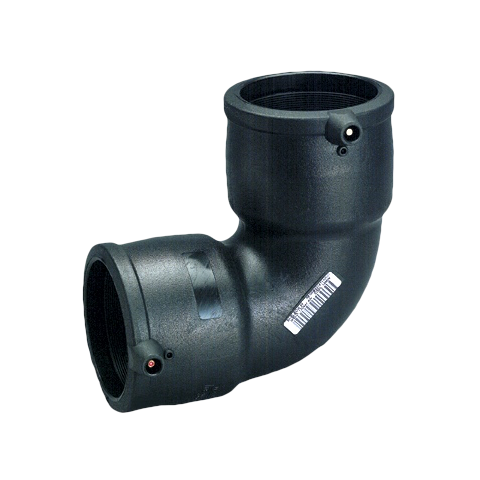

Pipe & Fittings
